Description
The Hinged Joint fence are widely used in Garden fencing, crop protection, live stock fencing and confinement .
Hongda Hardware supplies several types of barbed wire, which differ in the type of wire and manufacturing method used in their construction. All the specifications meeting the ASTMA-116.
High Tensile Filed Fence

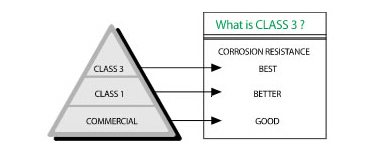

Fence Design | Height | Vertical | Roll Length | Top and Bottom Dia | Filer Dia | Roll Weight | Coating |
726-6 | 26’’ | 6’’ | 330’ | 12.5g | 14g | 80lbs | Class3 |
832-6 | 32’’ | 6’’ | 330’ | 12.5g | 14g | 93lbs | Class3 |
939-6 | 39’’ | 6’’ | 330’ | 12.5g | 14g | 106lbs | Class3 |
1047-6 | 39’’ | 6’’ | 330’ | 12.5g | 14g | 120lbs | Class3 |
Low Carbon Standard Filed Fence
| Fence Design | Height | Vertical | Roll Length | Top and Bottom Dia | Filer Dia | Roll Weight | Coating |
832-6 | 32’’ | 6’’ | 330’ | 10g | 12.5g | 147lbs | Class1 |
939-6 | 39’’ | 6’’ | 330’ | 10g | 12.5g | 170lbs | Class1 |
1047-6 | 47’’ | 6’’ | 330’ | 10g | 12.5g | 194lbs | Class1 |
939-12 | 39’’ | 12’’ | 330’ | 10g | 12.5g | 130lbs | Class1 |
1047-12 | 47’’ | 12’’ | 330’ | 10g | 12.5g | 147lbs | Class1 |
